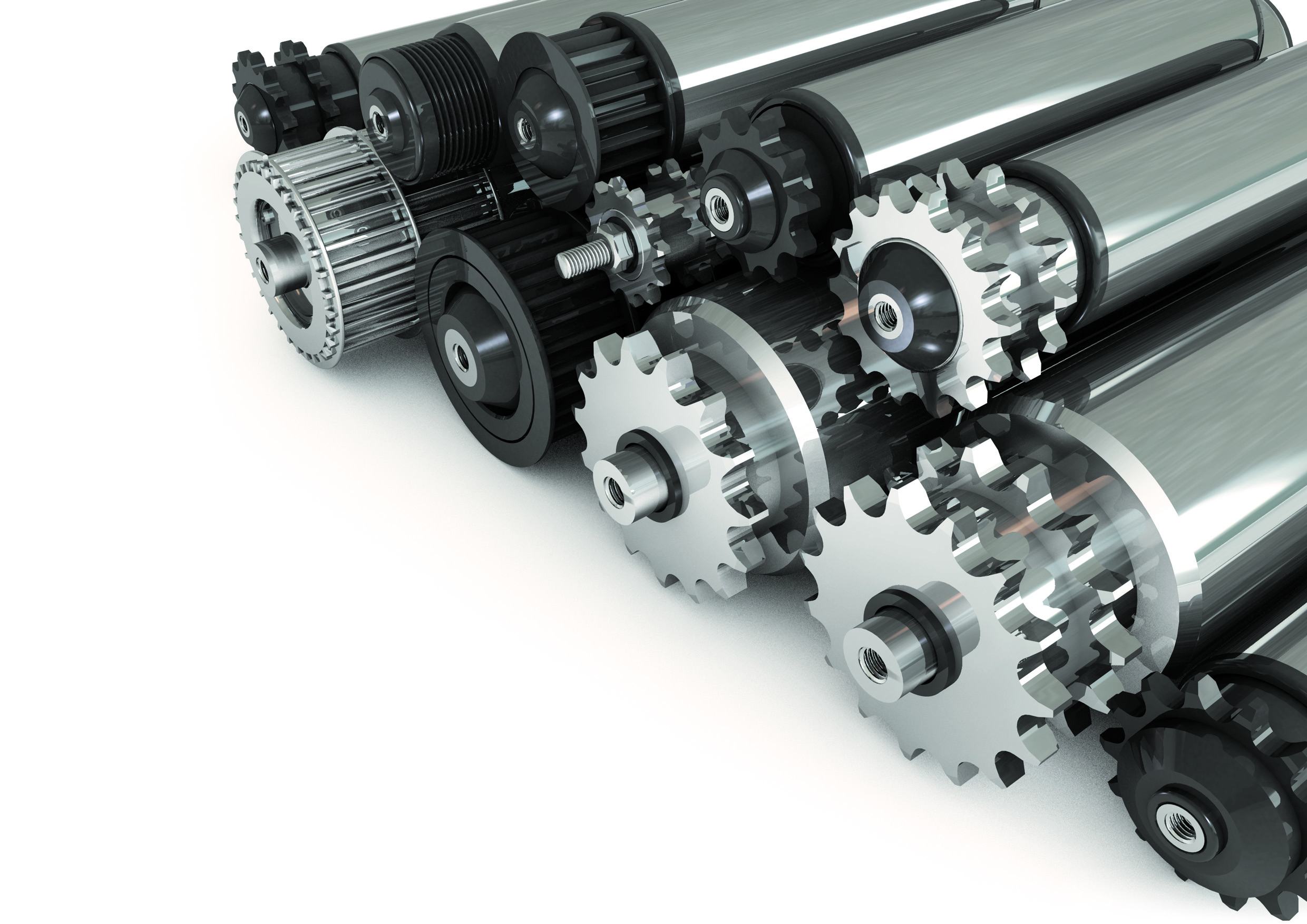

DRIVEN ROLLERS
Our driven rollers, comprising drives, tubes, axles, and bearings, ensure optimal performance and durability by making sure every component is sized to meet the specified load, speed, and torque requirements. The rollers transmit motion directly to your loads without belts, chains, or external gearboxes.
The weakest element gets more attention to provide better reliability. Their modular design snaps into standard roller conveyor frames, making them ideal for incline conveyors, accumulation zones, and long-distance transport.
| Application | Producttype | Tube diameter | Material Tube | Load capacity Castor | Drive element | Drive type | Drive Design | ADD TO QUOTE |
|---|---|---|---|---|---|---|---|---|
| Light | Type 306 | 30 - 108mm | Steel, Plastic | Depending on the bearing | - | Round belt | ||
| Light | Type 307 | 30 - 108mm | Steel, Plastic | Depending on the bearing | - | Round belt | ||
| Light | Type 308 | 30 - 108mm | Steel, Plastic | Depending on the bearing | - | Round belt | ||
| Light | Type 309 | 30 - 108mm | Steel, Plastic | Depending on the bearing | - | Round belt | ||
| Light | Type 432 | 30 - 32mm | Steel, Plastic, Niro | 400 N | Steel | Adjustable accumulation drive | ||
| Light | Type 433 | 30 - 32mm | Steel, Plastic, Niro | 400 N | Steel | Fixed drive | ||
| Light | Type 435 | 30 - 32mm | Steel, Plastic, Niro | 400 N | Steel | Accumulation and fixed drive | ||
| Light | Type 437 | 30 - 32mm | Steel, Plastic, Niro | 400 N | Steel | Accumulation and fixed drive | ||
| Light | Type 450 | 50 – 90 mm | Steel, Plastic, Niro | 400 N | Plastic | Accumulation and fixed drive | ||
| Light | Type 452 | 50 – 90 mm | Steel, Plastic, Niro | 400 N | Plastic | Accumulation and fixed drive | ||
| Light | Type 470 | 50 – 90 mm | Steel, Plastic, Niro | 400 N | Plastic | Accumulation and fixed drive | ||
| Light | Type 480 | 50 – 90 mm | Steel, Plastic, Niro | 400 N | Plastic | Accumulation and fixed drive | ||
| Medium | Type 306 | 30 - 108mm | Steel, Plastic | Depending on the bearing | - | Round belt | 1 bead | |
| Medium | Type 307 | 30 - 108mm | Steel, Plastic | Depending on the bearing | - | Round belt | 2 beads | |
| Medium | Type 308 | 30 - 108mm | Steel, Plastic | Depending on the bearing | - | Round belt | 3 beads | |
| Medium | Type 309 | 30 - 108mm | Steel, Plastic | Depending on the bearing | - | Round belt | 4 beads | |
| Medium | Type 420 | 50 - 50 mm | Steel, Niro | 500 N | Plastic | Fixed drive | Poly V | |
| Medium | Type 445 | 50 - 80 mm | Steel, Plastic, Niro | 600 N | Plastic | Accumulation and fixed drive | Z20 8M-11.2 mm Poly Chain | |
| Medium | Type 445 RS | 50 - 80 mm | Steel, Plastic, Niro | 1000 N | Steel | Accumulation and fixed drive | Z20 8M-11.2 mm Poly Chain | |
| Medium | Type 447 | 50 – 89 mm | Steel, Niro | 1500 N | Steel | Fixed drive | Z20 8M-11.2 mm Poly Chain | |
| Medium | Type 454 | 50 – 90 mm | Steel, Plastic, Niro | 1000 N | Steel | Accumulation and fixed drive | Single sprocket z11 Standard toothing 1/2 x5/16 08 B1 12,7 x 7,75 | |
| Medium | Type 545 R | 50 - 80 mm | Steel, Plastic, Niro | 1000 N | Steel | Accumulation and fixed drive | Single sprocket z11 Standard toothing 1/2 x5/16 08 B1 12,7 x 7,75 | |
| Medium | Type 457 | 50 – 90 mm | Steel, Plastic, Niro | 1000 N | Steel | Accumulation and fixed drive | Single sprocket z11 Standard toothing 1/2 x5/16 08 B1 12,7 x 7,75 | |
| Medium | Type 462/46 | 50 – 90 mm | Steel, Plastic, Niro | 1000 N | Plastic | Accumulation and fixed drive | Single sprocket z12 Drive sprocket toothing 5/8 x3/8 10 B1 15,875 x 9,65 | |
| Medium | Type 462 R | 50 – 90 mm | Steel, Plastic, Niro | 1000 N | Steel | Accumulation and fixed drive | Single sprocket z12 Drive sprocket toothing 5/8 x3/8 10 B1 15,875 x 9,65 | |
| Medium | Type 464 | 50 – 89 mm | Steel, Niro | 1500 N | Plastic | Fixed drive | Single sprocket z12 Drive sprocket toothing 5/8 x3/8 10 B1 15,875 x 9,65 | |
| Medium | Type 500 | 50 – 90 mm | Steel, Plastic, Niro | 1000 N | Steel | Accumulation and fixed drive | Double sprocket z14, Standard toothing 1/2×5/16, 08 B1, 12.7×7.75 | |
| Medium | Type 500 R | 50 - 80 mm | Steel, Plastic, Niro | 1000 N | Steel | Adjustable accumulation drive | Double sprocket z14, Standard toothing 1/2×5/16, 08 B1, 12.7×7.75 | |
| Medium | Type 502 | 40 - 89 mm | Steel, Niro | 1500 N | Steel | Fixed drive | Double sprocket z14, Standard toothing 1/2×5/16, 08 B1, 12.7×7.75 | |
| Medium | Type 506 | 50 – 90 mm | Steel, Plastic, Niro | 1000 N | Steel | Accumulation and fixed drive | Single sprocket z14 Standard toothing 1/2 x5/16 08 B1 12,7 x 7,75 | |
| Medium | Type 506 R | 50 - 80 mm | Steel, Plastic, Niro | 1000 N | Steel | Fixed drive | Single sprocket z14 Standard toothing 1/2 x5/16 08 B1 12,7 x 7,75 | |
| Medium | Type 508 | 50 - 108 mm | Steel, Niro | 1500 N | Steel | Fixed drive | Single sprocket z14 Standard toothing 1/2 x5/16 08 B1 12,7 x 7,75 | |
| Medium | Type 516 | 80 - 108 mm | Steel, Niro | 1800 N | Plastic | Fixed drive | Z30 8M-21mm Poly chain | |
| Medium | Type 517 z24 | 80 - 108 mm | Steel, Niro | 1200 N | Plastic | Fixed drive | Z24 or z25 8M-25 mm HTD | |
| Medium | Type 517 z30 | 80 - 108 mm | Steel, Niro | 1800 N | Plastic | Fixed drive | Z30 or z34 8M-30 mm HTD | |
| Medium | Type 518 | 80 - 89 mm | Steel, Niro | 1800 N | Plastic | Fixed drive | Double sprocket z18 Standard toothing 5/8 x3/8 10 B1 15,875 x 9,65 | |
| Medium | Type 519 | 80 - 108 mm | Steel, Niro | 1800 N | Plastic | Fixed drive | Double sprocket z18 Standard toothing 5/8 x3/8 10 B1 15,875 x 9,65 | |
| Medium | Type 520 | 80 - 108 mm | Steel, Niro | 1800 N | Steel | Adjustable accumulation drive | Double sprocket z18 Standard toothing 5/8 x3/8 10 B1 15,875 x 9,65 | |
| Medium | Type 520 R | 80 - 108 mm | Steel, Niro | 1800 N | Steel | Adjustable accumulation drive | Double sprocket z18 Standard toothing 5/8 x3/8 10 B1 15,875 x 9,65 | |
| Medium | Type 521 | 80 - 108 mm | Steel, Niro | 1800 N | Steel | Adjustable accumulation drive | Double sprocket z18 Standard toothing 5/8 x3/8 10 B1 15,875 x 9,65 | |
| Medium | Type 521 R | 80 - 108 mm | Steel, Niro | 1800 N | Steel | Adjustable accumulation drive | Double sprocket z18 Standard toothing 5/8 x3/8 10 B1 15,875 x 9,65 | |
| Medium | Type 522 | 80 - 89 mm | Steel, Niro | 1200 N | Plastic | Fixed drive | Double sprocket z18 Standard toothing 5/8 x3/8 10 B1 15,875 x 9,65 | |
| Medium | Type 522 | 80 - 89 mm | Steel, Niro | 800 N | Plastic | Fixed drive | Double sprocket z18 Standard toothing 5/8 x3/8 10 B1 15,875 x 9,65 | |
| Medium | Type 533 Rz | 80 - 108 mm | Steel, Niro | 1800 N | Steel | Adjustable accumulation drive | Z30 or z34 8M-30 mm HTD | |
| Heavy | Type 306 | 30 - 108mm | Steel, Plastic | Depending on the bearing | - | Round belt | 1 bead | |
| Heavy | Type 307 | 30 - 108mm | Steel, Plastic | Depending on the bearing | - | Round belt | 2 beads | |
| Heavy | Type 308 | 30 - 108mm | Steel, Plastic | Depending on the bearing | - | Round belt | 3 beads | |
| Heavy | Type 309 | 30 - 108mm | Steel, Plastic | Depending on the bearing | - | Round belt | 4 beads | |
| Heavy | Type 510 | 64 - 133 mm | Steel, Niro | 3400 N | Steel | Fixed drive | Double sprocket z15 or z13 Standard toothing 5/8 x3/8 10 B1 15,875 x 9,65 | |
| Heavy | Type 511 | 64 - 133 mm | Steel, Niro | 3400 N | Steel | Fixed drive | Double sprocket z15 or z13 Standard toothing 5/8 x3/8 10 B1 15,875 x 9,65 | |
| Heavy | Type 512 | 80 – 133 mm | Steel, Niro | 4000 N | Steel | Fixed drive | Double sprocket z13 Standard toothing 3/4 x7/16 12 B1 19,055 x 11,68 | |
| Heavy | Type 513 | 80 – 133 mm | Steel, Niro | 4000 N | Steel | Fixed drive | Double sprocket z13 Standard toothing 3/4 x7/16 12 B1 19,055 x 11,68 | |
| Heavy | Type 534 z3 | 89 - 133 mm | Steel, Niro | 2000 N | Steel | Fixed drive | Z30 or z34 8M-30 mm HTD | |
| Heavy | Type 539 | 80 – 133 mm | Steel, Niro | 2000 N | Steel | Fixed drive | V-ribbed belt pulley, PK-reference (DIN9982) |
