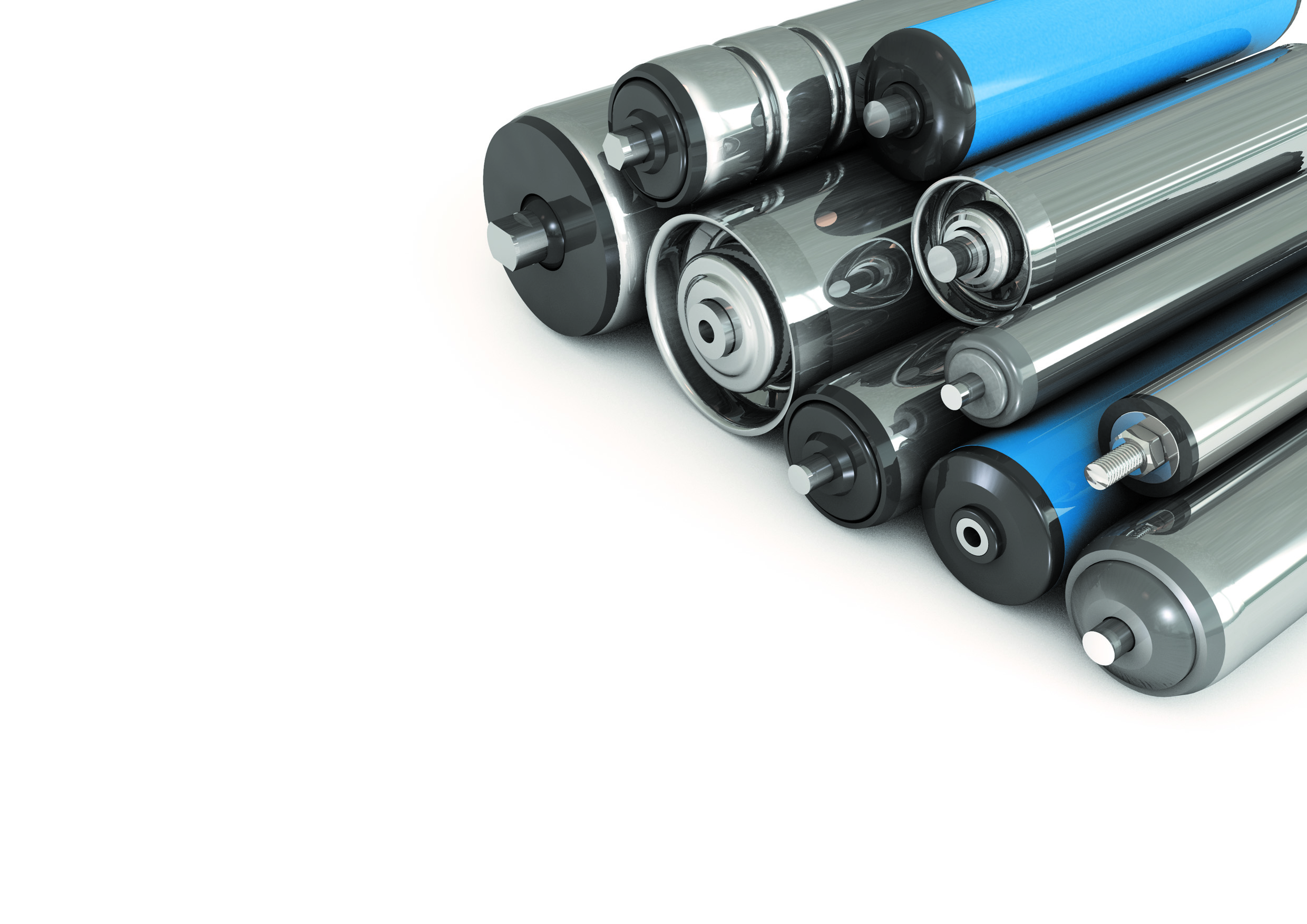

GRAVITY ROLLERS
Gravity rollers harness gravity and the momentum of loads to move goods without external power. Gravity rollers, whole of axles, tubes and bearings, require a careful design to meet the specified requirements. To ensure reliability and durability, the weakest element’s dimensions are taken in consideration to guarantee optimal performance.
Available in over 30 profiles, they’re the go-to choice for accumulation, buffering, and incline applications across light- to heavy-duty intralogistics systems.
| Application | Producttype | Tube diameter | Material Tube | Material bearing | Bearing Loadcapacity in N | Roller base | ADD TO QUOTE |
|---|---|---|---|---|---|---|---|
| Light | Type 50 | 16 – 40 mm | Steel, Plastic | Bearing: Plastic | 100 N | Spherical row | |
| Light | Type 60 | 30 – 40 mm | Steel, Plastic | Bearing: Plastic | 600 N | Precision ball bearing | |
| Light | Type 100 | 50 - 63 mm | Steel, Plastic, Niro | Bearing: Plastic | 200 N | Spherical row | |
| Light | Type 150 | 50 - 63 mm | Steel, Plastic, Niro | Bearing: Plastic | 150 N | Plain bearing | |
| Light | Type 151 | 50 - 63 mm | Steel, Plastic, Niro | Bearing: Plastic | 150 N | Plain bearing | |
| Medium | Type 200 | 30 - 80 mm | Steel, Plastic, Niro | Bearing: Steel | 1600 N | Spherical row | |
| Medium | Type 300 | 50 – 90 mm | Steel, Plastic, Niro | Bearing: Plastic | 1600 N | Precision ball bearing | |
| Medium | Type 301 | 50 – 89 mm | Steel, Niro | Bearing: Plastic | 1600 N | Precision ball bearing | |
| Medium | Type 302 | 50 – 60 mm | Steel, Plastic, Niro | Bearing: Plastic | 1600 N | Precision ball bearing | |
| Medium | Type 320 | 40 – 50 mm | Steel, Plastic, Niro | Bearing: Plastic | 1200 N | Precision ball bearing | |
| Medium | Type 401 | 40 – 50 mm | Steel, Niro | Bearing: Plastic | 1600 N | Precision ball bearing | |
| Heavy | Type 220 | 50 - 80 mm | Steel, Plastic, Niro | Bearing: Steel | 2400 N | Spherical row | |
| Heavy | Type 250 | 40 - 80 mm | Steel, Plastic | Bearing: Steel | 2400 N | Precision ball bearing | |
| Heavy | Type 260 | 64 - 108 mm | Steel, Niro | Bearing: Steel | 5000 N | Precision ball bearing | |
| Heavy | Type 290 | 40 - 90 mm | Steel, Niro | Bearing: Steel | 1200 N | Precision ball bearing | |
| Heavy | Type 400 | 50 - 133 mm | Steel, Niro | Bearing: Plastic | 3600 N | Precision ball bearing | |
| Heavy | Type 400 ST | 64 - 133 mm | Steel, Niro | Bearing: Plastic | Precision ball bearing | ||
| Heavy | Type 402 | 40 – 108 mm | Steel, Niro | Bearing: Plastic | 3600 N | Precision ball bearing | |
| Heavy | Type 402 WO | 63 – 133 mm | Steel, Niro | Bearing: Steel | 3600 N | Precision ball bearing | |
| Heavy | Type 402 WS | 64 - 133 mm | Steel, Niro | Bearing: Steel | 6000 N | Precision ball bearing | |
| Heavy | Type 402 WST | 80 – 133 mm | Steel, Niro | Bearing: Steel | 3600 N | Precision ball bearing | |
| Heavy | Type 402 WT | 50 – 89 mm | Steel, Niro | Bearing: Steel | 2400 N | Precision ball bearing | |
| No application (weight) | Type 402 K | 40 – 50 mm | Steel, Niro | Bearing: Steel | Precision ball bearing | ||
| No application (weight) | Type 402 ST | 64 - 133 mm | Steel, Niro | Bearing: Steel | Precision ball bearing |
